Two-part repair clamp made of malleable cast iron for sealing holes, cracks and corrosion spots.
Specifications:
- Thread size: Male 2" Inch BSP;
- Theoretical maximum working range dimeter for pipe: 59,7-63,6mm;
- Universal fittings - compression joint for plain-ended pipe on one side, female thread on the other;
- Maximum operating pressure of 16 bar;
- Maximum operating temperature 90C;
- Clamps are used for connecting steel, PE and other pipes;

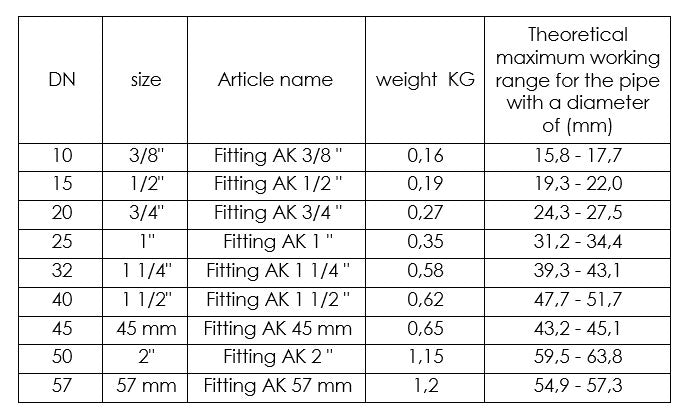

- For pipes with theoretical range of application as shown in the table;
Fittings components:
- Sleeve and nut - black malleable iron;
- Compression ring - galvanized carbon steel;
- Washer - galvanized carbon steel;
- Sealing ring - NBR rubber.
